The SI series intercom is made of aluminum alloy, with built-in noise reduction DSP processor, and AI noise reduction algorithm can eliminate more than 90% background noise to ensure clear audio and video calls.

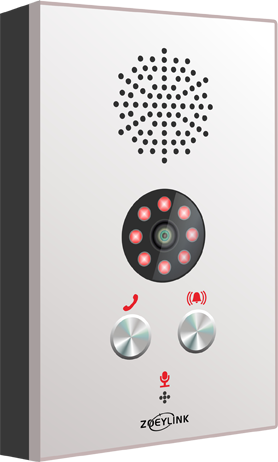

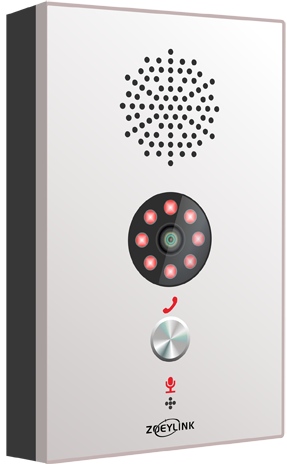

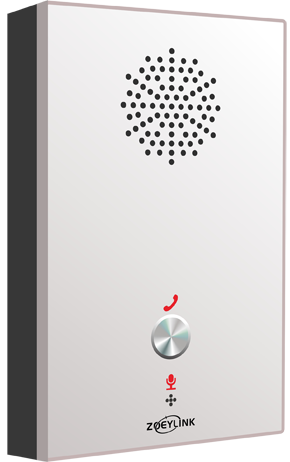

The SI series SIP intercom includes three products: one-key SIP voice (SI-10), one-key SIP video intercom (SI-11) and two-key SIP videol intercom (SI-21).

The SI series SIP intercom can be widely used in unattended parking lot, station wharf, highway, commercial building, hospital, prison and other industries.

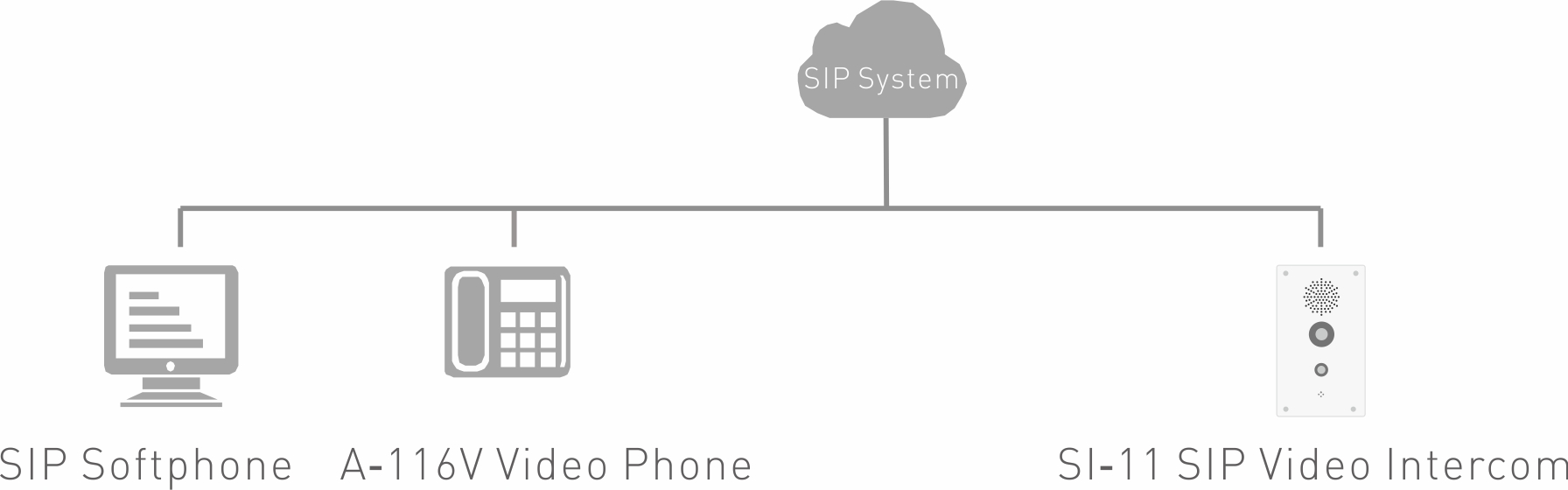

Topological map

Datasheet

Protocol	SIP Protocol	SIP 2.0
Buttons	Material	Aluminium alloy
	Keypad	Optional
Audio	Microphone	1
	Amplifier	3W
	Speaker	3W
	AI noise reduction	More than 90%
	Hands-free talk	Full-duplex
	Codec	G.711、G.722、GSM、 iLBC、 Speex
	Power	12V(+-15%)/2A DC or PoE
Interface	Ethernet	10/100BASE-TX s Auto-MDIX , RJ-45
	Relay	2
Structural property	Housing material	Aluminum alloy cover, Metal base
	Operating temperature	-20°C to 70°C
	Working condition humidity	10% - 95%
	Storage temperature	-40°C to 70°C
	Installation	Flush mounting (embedded)
	Net weight	1.2kg
	Size	L*W*H：185*114*38 mm
	Waterproof	IP65

Video parameter

Video encoding	H.264
Camera	2 mega-pixel
Visual angle	90°
Night view	Support
Image resolution ratio	1280*720
Minimum light sensitivity	0.05 Lux，0 lux（with infrared compensation light）
Maximum video frame rate	1280x720 （30frames）
